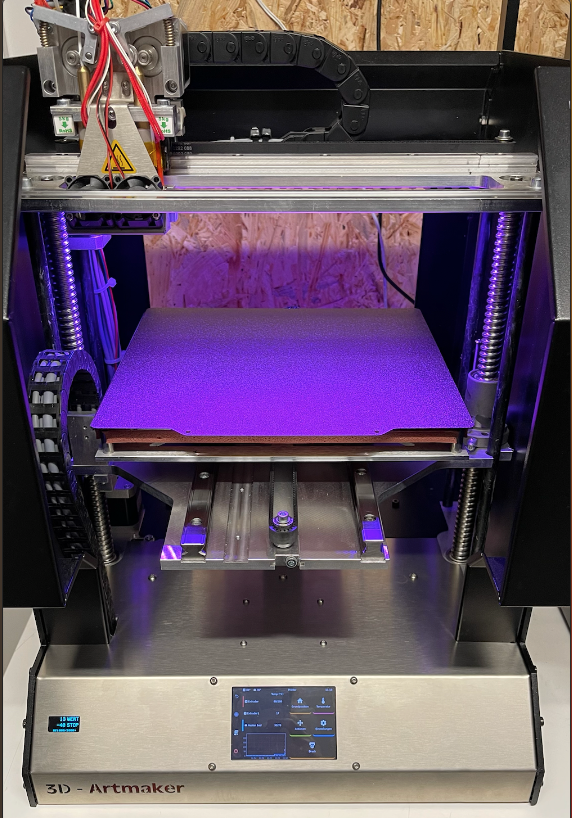

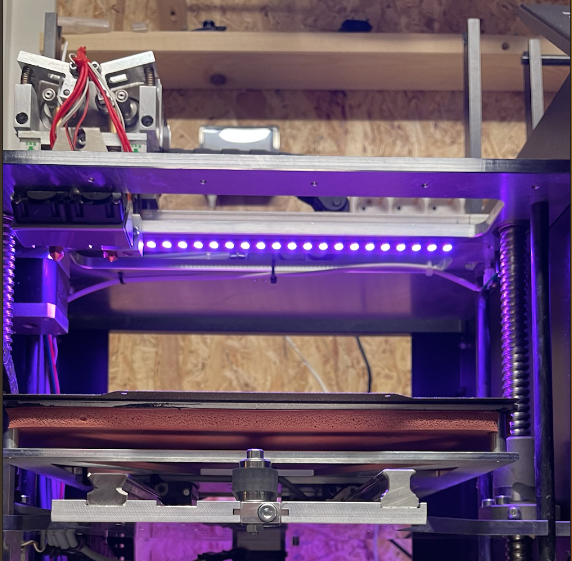

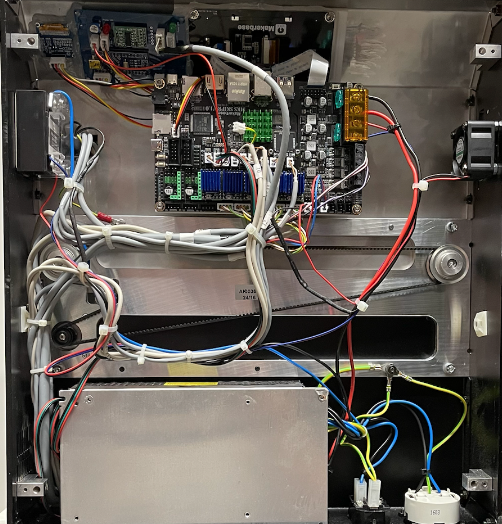

Hier seht Ihr die ganz neunen Klipper Fronten mit RF2000 MKS SKIPR

Hier sind noch 2 Videos vom Homen und Bedleveling zum ersten.

[dennis02121978Administrator]

Hier ist noch das BedLeveling zum RF2000 (den in den ganzen Videos) von mir Heute Mo.02.01.2023

Bitte nicht vergessen wer die aktuelle Version noch nicht auf dem ADAS-EMU hat, bitte vorher das upgrade machen und die Konfiguration von mir zum Probe anpassen wenn man die aktuelle Printer.cfg nicht hat.



#####################################################################
# Probe 3D-Touch on Board mit ADS-EMU 3Dartmaker
#####################################################################
[probe]
pin:!PA13
x_offset: 0
y_offset: -25
z_offset: 0
speed: 0.1
samples: 5
sample_retract_dist: 0.5
lift_speed: 0.1
samples_result: average
samples_tolerance: 0.02
samples_tolerance_retries: 3
activate_gcode:
probe_reset

[output_pin probe_reset_pin]
pin: PA8

[gcode_macro probe_reset]
gcode:
SET_PIN PIN=probe_reset_pin VALUE=0
G4 P300
SET_PIN PIN=probe_reset_pin VALUE=1
G4 P100

[bed_mesh]
mesh_min: 0,25
mesh_max: 200, 210
probe_count: 6,3
mesh_pps: 2,3
algorithm: bicubic
bicubic_tension: 0.2
speed: 50
horizontal_move_z: 1



1. Temperatur Hotend auf 210 und Bed auf 65 Grad
2. Filament komplett entnehmen und ca. 5min warten
3. Düse abwischen
4. BedLeveling Starten

14:20:43 $BED_MESH_CALIBRATE
14:20:52 // probe at 0.000,55.000 is z=-0.368359
14:20:58 // probe at 0.000,55.000 is z=-0.368359
14:21:04 // probe at 0.000,55.000 is z=-0.366016

14:21:18 // probe at 39.001,55.000 is z=-0.231641
14:21:24 // probe at 39.001,55.000 is z=-0.231641
14:21:30 // probe at 39.001,55.000 is z=-0.233594

14:21:43 // probe at 78.002,55.000 is z=-0.155078
14:21:49 // probe at 78.002,55.000 is z=-0.155859
14:21:54 // probe at 78.002,55.000 is z=-0.158203

14:22:07 // probe at 117.003,55.000 is z=-0.093359
14:22:13 // probe at 117.003,55.000 is z=-0.090625
14:22:18 // probe at 117.003,55.000 is z=-0.090234

14:22:31 // probe at 155.997,55.000 is z=-0.077344
14:22:37 // probe at 155.997,55.000 is z=-0.082812
14:22:42 // probe at 155.997,55.000 is z=-0.080469

14:22:54 // probe at 194.998,55.000 is z=-0.074609
14:23:00 // probe at 194.998,55.000 is z=-0.074219
14:23:06 // probe at 194.998,55.000 is z=-0.074219

14:23:19 // probe at 194.998,139.998 is z=-0.148828
14:23:25 // probe at 194.998,139.998 is z=-0.149609
14:23:31 // probe at 194.998,139.998 is z=-0.149219

14:23:44 // probe at 155.997,139.998 is z=-0.102344
14:23:49 // probe at 155.997,139.998 is z=-0.102734
14:23:55 // probe at 155.997,139.998 is z=-0.101562

14:24:07 // probe at 117.003,139.998 is z=-0.121484
14:24:13 // probe at 117.003,139.998 is z=-0.121094
14:24:19 // probe at 117.003,139.998 is z=-0.121094

14:24:32 // probe at 78.002,139.998 is z=-0.124219
14:24:37 // probe at 78.002,139.998 is z=-0.128906
14:24:43 // probe at 78.002,139.998 is z=-0.128906

14:24:56 // probe at 39.001,139.998 is z=-0.223047
14:25:02 // probe at 39.001,139.998 is z=-0.219922
14:25:08 // probe at 39.001,139.998 is z=-0.219141

14:25:21 // probe at -0.000,139.998 is z=-0.248047
14:25:27 // probe at -0.000,139.998 is z=-0.248047
14:25:33 // probe at -0.000,139.998 is z=-0.248047

14:25:48 // probe at -0.000,225.002 is z=-0.281250
14:25:53 // probe at -0.000,225.002 is z=-0.280078
14:25:59 // probe at -0.000,225.002 is z=-0.280078

14:26:13 // probe at 39.001,225.002 is z=-0.222656
14:26:19 // probe at 39.001,225.002 is z=-0.222656
14:26:25 // probe at 39.001,225.002 is z=-0.223437

14:26:38 // probe at 78.002,225.002 is z=-0.161719
14:26:44 // probe at 78.002,225.002 is z=-0.160156
14:26:49 // probe at 78.002,225.002 is z=-0.160547

14:27:02 // probe at 117.003,225.002 is z=-0.103125
14:27:08 // probe at 117.003,225.002 is z=-0.105078
14:27:14 // probe at 117.003,225.002 is z=-0.105078

14:27:26 // probe at 155.997,225.002 is z=-0.086328
14:27:32 // probe at 155.997,225.002 is z=-0.088281
14:27:37 // probe at 155.997,225.002 is z=-0.088281

14:27:50 // probe at 194.998,225.002 is z=-0.124609
14:27:56 // probe at 194.998,225.002 is z=-0.123437
14:28:01 // probe at 194.998,225.002 is z=-0.125781

14:28:01 // Mesh Bed Leveling Complete
14:28:01 // Bed Mesh state has been saved to profile [default]
// for the current session. The SAVE_CONFIG command will
// update the printer config file and restart the printer.



Diese Daten sind nicht be oder überarbeitet außer Leerzeile für bessere Lesbarkeit eingefügt. Dieses Leveling kann ich auch gerne per Anydesk zeigen (LIVE) im Fall jemand glaubt mir das nicht.



Hier noch das Bild dazu



[dennis02121978Administrator]

Hier sind noch die Konfiguration Dateien für Original Antrieb und 1.75mm Filament mit V3 Hotend (Nicht RF2000_V2).
